Electrical Spec. |

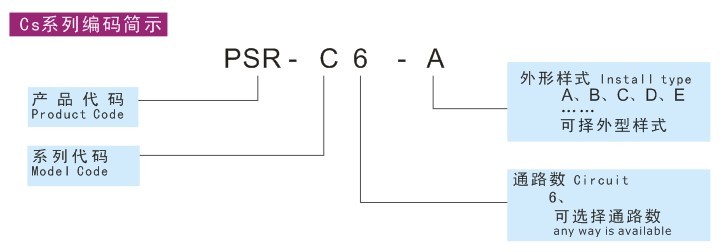

Options | ||
|
Circuit |
6 |
Support for higher speed:500Rpm |
|
|
Rating voltage |
240VAC |
More install method for option |
|
|
Rating current |
2A/Ring,5A,10A by parrelled |
Lead length can be appointed |
|
|
Insulation resistance |
1000MΩ@500VDC |
Cable Exit is optional |
|
|
Dielectric strength |
600VDC@50Hz |
Available connecter and Heat-shrink tube |
|
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
|
|
|
Mechanical Spec |
Environment |
||
|
Speed |
300Rpm |
Working temperature |
-40℃~+80℃ |
|
Torque |
0.01N.M |
Mechanical vibration |
MIL-SID-810E |
|
Seal class |
IP54 |
Humidity |
10% to 90% RH non-condensing |
|
Contact material |
Precious Metal：Gold-Gold |
Materials |
Lead Free,RoHS compliant |
|
Lead Wire |
6 color AWG#28 Teflon wire |
CE Certified |
YES |
|
Life |
30million revolutions |
|
|

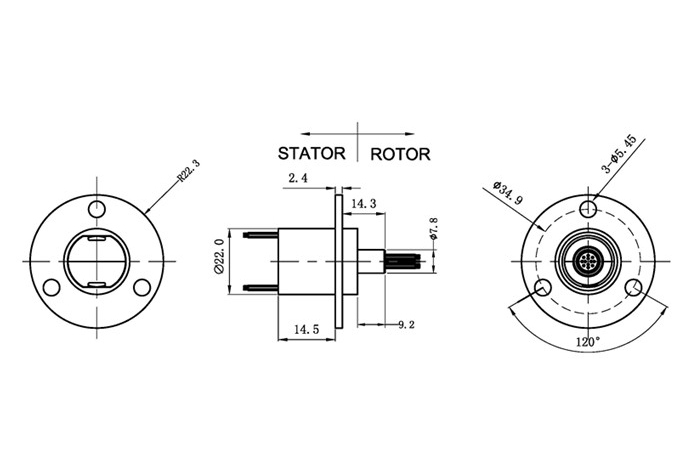

Installation Guide,

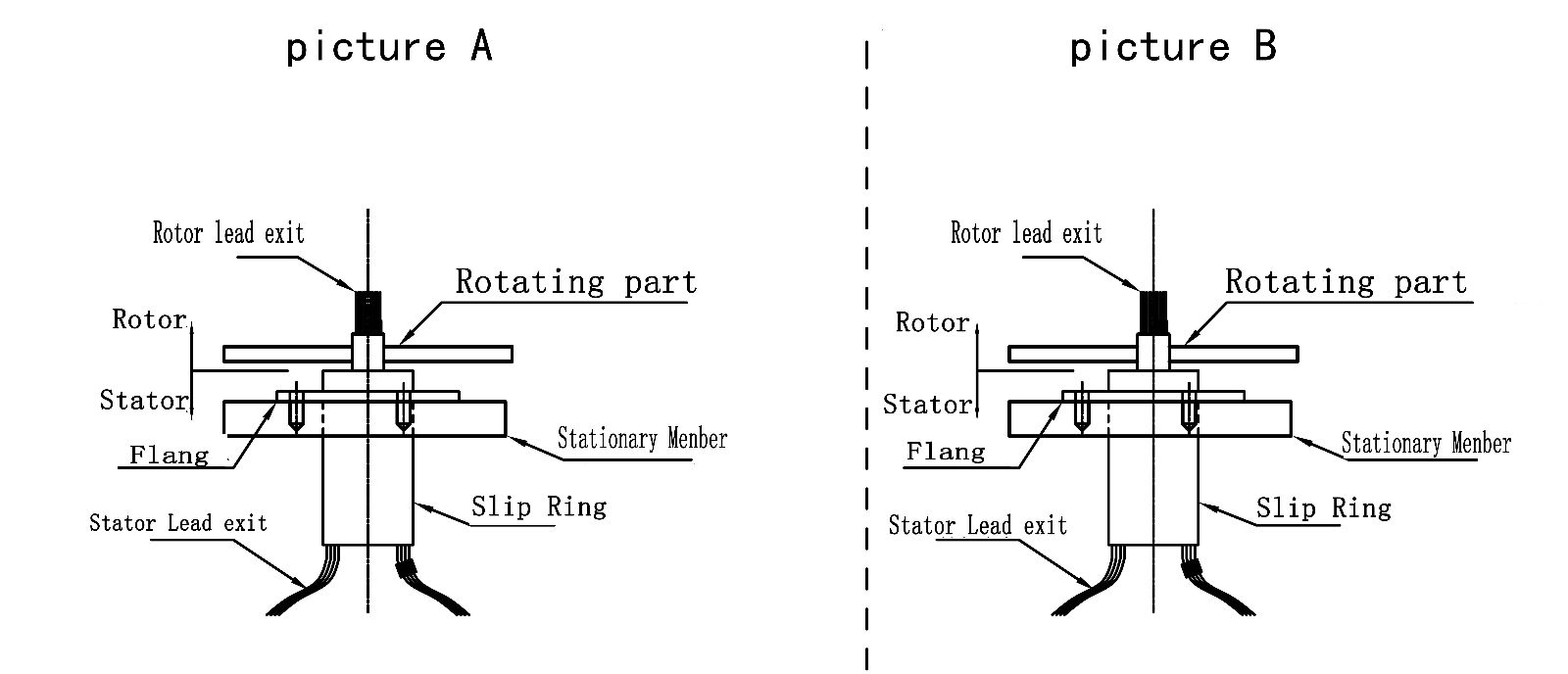

Picture A,
1. Position the slip ring in the desired location and tighten both set screws to the shaft . Maximum torque 25 Ib-in(DO NOT OVER TORQUE)
2. Route the wiring and make the neccessary connections . Do not allow the wiring to restrict free rotation of the slip ring . Do not constrain wiring such that wire flexing occurs . Doing so will ultimately cause failure(breakage of the wiring)
Picture B
1.Align the mounting holes(M3×8) in the flange to mounting base and install mounting screws(M3), securely tighten screws.
2. Route the wiring and make the neccessary connections . Do not allow the wiring to restrict free rotation of the slip ring.
CAUTION:
Because of possible geometric mismatching between the customer's application and the slip ring , 'hard mounting' of both ends of the slip ring (i.e.,securing the rotor and stator such that threr is no floating during operation) is not recommended and may cause premature failure.
 |
