Miniture Through Bore Slip Ring

產品類型：Miniture Though slip ring 產品型號：PSR-F3-24
PSR-F3-24 slip ring is a miniature , standard , off-the-shelf series product wih through bore , that uses gold contacts at the rotary interface . Color-coded lead wires are used on both stator and rotor for simplified electtrical connections . Using a 90oV-groove ring design for each ring . The PSR-Fs slip ring provides smoother running , lower torque , low contact wear rates than competitive slip ring , and provides 24 circuit ,2A/circuit for powe or signal...
  • 性能

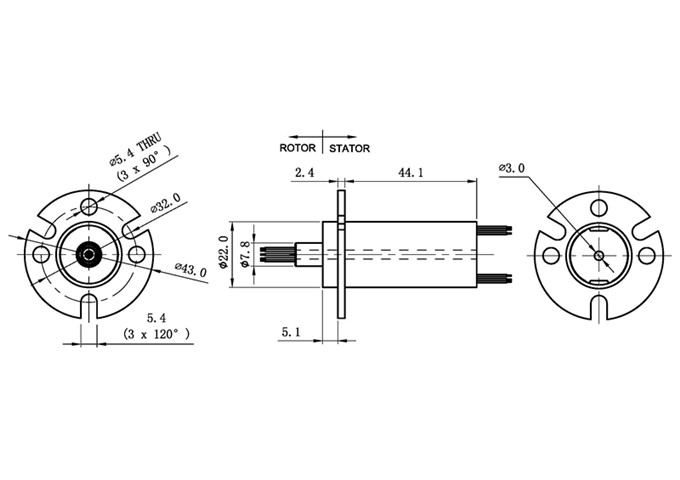

  • 尺寸圖
  • 特征
  • 安裝方法

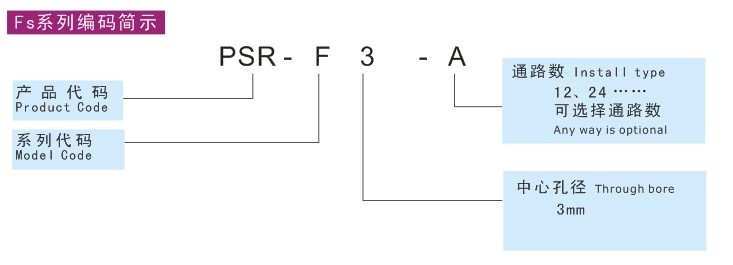

  • 訂貨號
  • 下載

Electrical Spec.

Options

Sircuit

24

 Flange for set up

Rating voltage

380VAC

The wire exit direction,length is optional

Rating current

2A /Ring,5A,10A by parrelled

Additional connector and the heat shrinkable tube

Insulation resistance

1000M@500VDC

 Higher voltage and current capacity

Dielectric strength

600VDC@50Hz

Support for higher speed: 500Rpm

Electrical noise

10mΩ@6VDC,50mA, 5Rpm

　

 Mechanical Spec

Environment

Through bore

3mm

Working temperature

-40℃~+80℃

Speed

300Rpm

Mechanical vibration

MIL-SID-810E

Torque

0.01N.M

Humidity

10% to 90% RH non-condensing

Seal class

IP54

Materials

Lead Free,RoHS compliant

Contact material

Precious Metal：Gold-Gold

CE Certified

YES

Lead Wire

12color AWG#28 Teflon wire

　

　

Life

00million revolutions

　

　



¤ Feature


?Compact minature design , small size fit for harsh space

?Moudel design ; Meet the most of requirement

?Combine slip ring and FORJ

?Can combine signal and power in smae slip ring

?Meet the requirement of industrial field



¤ Typical Application

?Small laboratory


?Electtrical equipment


?Medical equipment


?Robotics

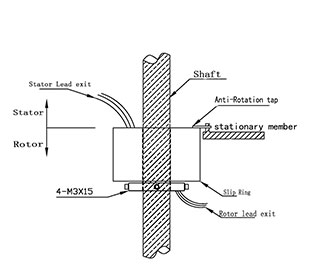

 Installation Guide:


1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)


2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.









  CAUTION:

Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
